Automatic Shampoo Filling Line
- Automatic shampoo filling machine is used to fill all types of liquids with different viscosity including the activities like capping, labelling and printing.
- The filling accuracy is very high with the pneumatic piston booster and volume measurement used in Shampoo filing and capping machine.
- Shampoo filler and capper are widely used in industries like pharmaceuticals, food, cosmetics, etc.
- Different specifications and shapes of bottles can be used for filling with this machine as the bottles go straight into the machine. Alien shaped bottles also can be filled with this device.
- This Automatic Shampoo Filling Line comes with everything you need to get your liquid sweetener bottling line up and running. It is designed to bottle 80 bottles per minute. Start your project today by clicking request a quote below!
- Filling Line Details
- Line Name: Automatic Shampoo Filling Line
- Automation: Automatic
- Filling volume: 250-2500ml
- Bottles Per Minute: 40-80

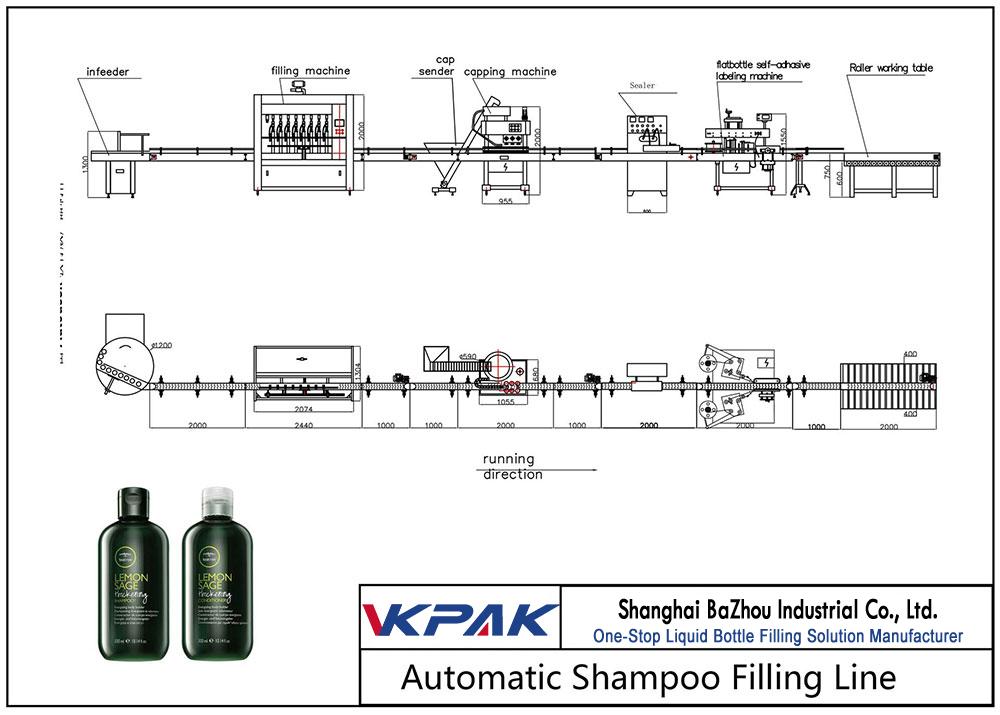

- Machines Included
- Bottle Feeding Turntable
- Automatic Servo Filling Machine
- Automatic Capping Machine
- Automatic Labeling Machine
- Bottle Working Table Rolling Type
- Shampoo Filling Machine Features
- 1.filling nozzles from 2 -16 nozzles for option
- 2.anti- drops, equipped with shut off filling nozzles
- 3.when filling, the filling nozzles will insert into the bottom of the bottles
- 4.Filling volume can be automatically adjusting by touch screen , meanwhile customer also can choose adjust by rotary handle for economy investment.
- 5.Frequency speed control, and no bottle no filling
- 6. Shampoo filling machine is designed to be compact and reasonable.
- 7. Choosing the international brand of electrical components. The main powered cylinder, chose the Taiwan Airtac double-action cylinder and magnetic switch, the Japanese Mitsubishi PLC computer, photo electricity and Taiwan-manufactured touching screen, ensuring a good quality and lasting steady performance.
- 8. Convenient maintenance without any tools. This machine can be dispart, cleaned and fixed easily.Filling precision and quantity are adjustable and should be regulated among a big range firstly,then be trimmed.
- 9. We can customize the filling machine with specific filling-head number and particular cylinder volume,based on the user’s production demand. 6-head, 8-head and 10-head can be chosen.The cylinder volume can be chosen from 25-250ml, 50-500ml, 100-1000ml and 250-2500ml. The whole machine is speed-adjustable.
- 10. Considering the different viscosity of user’s material ,we especially set a special filling valve to adjust to different situations. and We also designed a descending filling lift system. In order to make the material-falling accurate at the bottle mouth , we designed a horizontal bottle-aiming fixture device.
- 11. The machine set a weight filling program to fix the flow parameter and makes the machine adjustable to the complicated material varieties. The system can realize the one-machine multi-use without other parts and decrease the equipment’s repeated investment.
