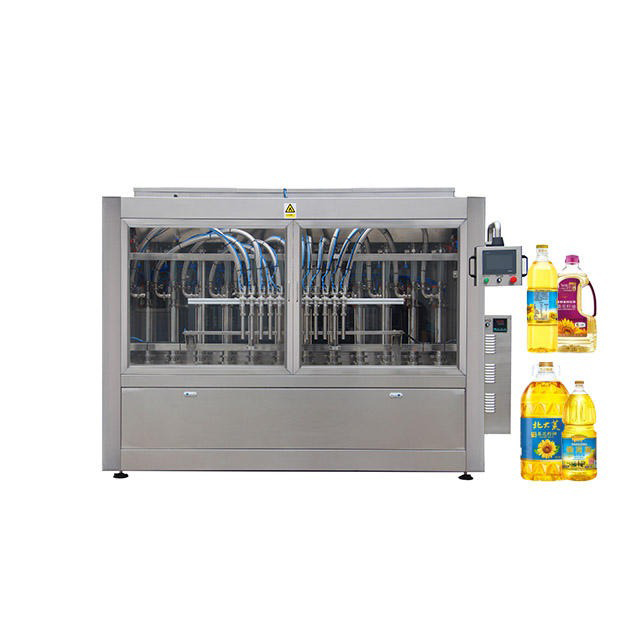

Rapeseed Oil Filling Machine
- VKPAK oil filling machine range including Edible Oil Filling Machine , Lubricant Filling Machine , Cooking Oil Filling Machine , Oil Filling Machine , Mustard Oil Filling Machines , Palm Oil Filling Machine , Rapeseed Oil Filling Machine ,Tin Oil Packaging Machine , Engine Oil Filling Machine.
- Our Oil filling machine suitable wide range oil like Peanut Oil , Sunflower Oil filler, Soybean Oil filling machine, Palm Oil filling machine, Coconut Oil filer , Cottonseed Oil filling machine, Mustard filling machine, Oil filler with capper machine, Corn Oil filling machine, Sesame Oil filling machine, Canola Oil filling machine, Shea Nut Oil filling machine and filling line including Bottle Unscramble, filler, capper ,Induction Cap sealer, Self adhesive Labeling machine, Sleeve labeling machine,carton packing machine
Configuration List
| Descriptions | Brand | Item | Remark |
| Servo motor | Panasonic | 1.5KW | Japan |
| Reducer | Fenghua | ATF1205-15 | Taiwan |
| Conveyor motor | ZhenYu | YZ2-8024 | China |
| Servo drivers | Panasonic | LXM23DU15M3X | Japan |
| PLC | Schneider | TM218DALCODR4PHN | France |
| Touch Screen | Schneider | HMZGXU3500 | France |
| Frequency Converter | Schneider | ATV12HO75M2 | France |
| Photo electricity of inspect bottle | OPTEX | BRF-N | Japan |
| Pneumatic Element | Airtac | Taiwan | |
| Rotary Valve | F07/F05 | No Need for Oil | |
| Pneumatic actuator | F07/F05 | No Need for Oil | |
| Low-Voltage Apparatus | Schneider | France | |
| Proximity switch | ROKO | SC1204-N | Taiwan |
| Bearing | China | ||
| Lead Screw | TBI | Taiwan | |
| Butterfly valve | CHZNA | China |
Technical Parameters
| Filling Nozzles | 1-16Nozzles |
| Production Capacity | 800 -5000Bottles Per Hour |
| Filling Volume | 100-500ml,100ml to 1000ml, 1000ml to 5000ml |
| Power | 1500W to 3000W, 220VAC |
| Accuracy | ±0.1% |
| Driven | Panasonic Servo Motor |
| Inerface | Schneider Touch Screen |
Features of Rapeseed Oil Filling Machine
- Drip free nozzles with drip tray for accidental drip.
- Non contact electronic sensor to ensure “no bottle no fill” system.
- PLC system with E100 HMI two line LCD displays and VFD control of C.G. make for conveyor speed control.
- German measuring chamber for better repeatability of 0.05%. Having in built non liquid contact sensor for measuring rotation of chamber.
- Body frame made up of M.S. with Powder coating.
- Capable of automatic intake of empty bottles / container on to the filling station and discharge after filling bottles with the help of stop and release lever pneumatically operated.
- Fast flow and fine flow system for better accuracy, interval can be steed form PLC, Volume would be steed individually for each nozzle with a increment of 1ml.
- Neck entry system so that the nozzle enter inside the container before filling to avoid spillage.
- 16 feet conveyor with 12 inches stainless steel slats and suitable for filling containers along with electric motor for main drive and conveyor reduction gear box and variable frequency drive.
- Enclosed body with transparent Acrylic doors in front and back
- Pneumatically operated Nozzle Up-Down movement & stopper Gates for bottle entry and exit.
- Adjustment can be made without interrupting filling sequence.
- Manual valve on bypass line of pump.
- Vane pump of 200 LPM
- In built memory to store 25 filling setting data.
- Filling accuracy of +/- 0.25%
Scope of Application
- This filling machine is used for quantitative filling various oils. We have the pneumatic filling machine and electric filling machine, automatic and semi-automatic oil filling line.
- Oil filling machine is suitable for the quantitative automatic liquid filling, can fill various oils, such as lubricating oil, edible oil, cooking oil, and drinks. It can fill oil in different sizes of bottles.
