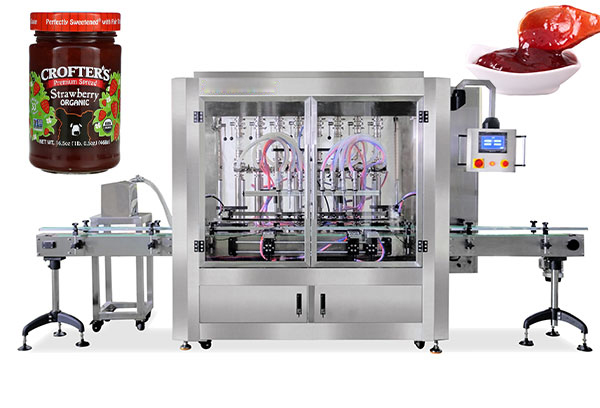

Apple Jam Filling Machine

Descriptions	Brand	Item	Remark
Servo motor	Panasonic	1.5KW	Japan
Reducer	Fenghua	ATF1205-15	Taiwan
Conveyor motor	ZhenYu	YZ2-8024	China
Servo drivers	Panasonic	LXM23DU15M3X	Japan
PLC	Schneider	TM218DALCODR4PHN	France
Touch Screen	Schneider	HMZGXU3500	France
Frequency Converter	Schneider	ATV12HO75M2	France
Photo electricity of inspect bottle	OPTEX	BRF-N	Japan
Pneumatic Element	Airtac		Taiwan
Rotary Valve		F07/F05	No Need for Oil
Pneumatic actuator		F07/F05	No Need for Oil
Low-Voltage Apparatus	Schneider		France
Proximity switch	ROKO	SC1204-N	Taiwan
Bearing			China
Lead Screw	TBI		Taiwan
Butterfly valve	CHZNA		China

Let us produce prosperous future hand in hand for Apple Jam Filling And Capping Machine, Automatic Bottle Cutting Machine , Automatic Micro Powder Filling Line, Cream Bottle Filling Machine , we have all day online sales to make sure the pre-sale and after-sale service in time.

a) Products to Fill:
1) hot fill ( 35 ~ 40℃) , cold filling normal temperature
2) Specific Gravity: 1.1 ~1.4 gr/cm3
3) Spreading Chocolate past • Honey • Spreading Cheese paste, Molasses.
b) Bottle type:
1) PET bottle • Quadrant Cross section • Volume 250 ml. • neck 32 mm.
2) Glass Jars & PE, PET Jars • Cylindrical Cross section • Volume 200 ~ 350 ml.
• neck 45 mm.
c) Filling tolerances: +/- max 0.5%
Apple Jam Filling Machine basic composition
1.1 Bottles & Jars cleaning by air.
1.2 Automatic bottles feeding and holders (for plastic bottles if need)
1.3 No dripping.
1.4 Output 20 ~ 100 bpm.
1.5 No bottle No fill
1.3 Control panel with PLC touch screen. Malty filling programs saving.
1.4 Double jacketed Hopper with:
• 180 liters volume, • Level Detector. • Electric heaters.
• Product’s temperature detector and control • Stirrer
1.5 Easy dissembling the filling system and nozzles for cleaning.
1.6 Machine’s body of SS 304, all parts in contact with product is SSL 316.

We will send engineers to carry out installation and debugging of the equipment in buyer’s place if requested.
The cost for International double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers.
The normal debugging term is 3-7days, and the buyer should pay US$80/day per engineer.
If customer do not require above, then customer need to be train in our factory. Before installation, the customer need read the operation manual firstly. Meanwhile, we will offer an operation video to customer.
